Nail Making Machine

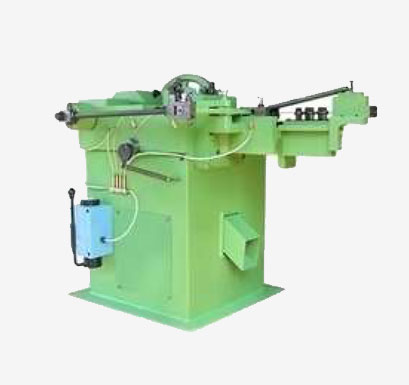

Nail Making Machine N1

Particular Size
Max Wire Diameter S.W.G. (m.m.) 20 – 15 (0.9 mm –1.8 mm)
Max Length Inch (mm) 1⁄4 -13/4 (6.4mm -45 mm)
Max Speed (Nails/Minutes) 600
Approx nett weight Kgs 470
Approx Gross Weight Kgs 615
Power Required H.P. 1.5
Case Size 1185 x 1055 x 1050mm
Production Estimate Price Estimate
Length in Inch Thickness in SWG Thickness in MM Kg in 8 Hour Average 75% Efficiency
1.75 15 1.83 150 96 KGs.
1.50 16 1.63 110
1.00 16 1.63 75
0 1 1 3
1..5000 177 1..4422 610
1.50 17 1.42 89
0.50 19 1.02 16
0.75 19 1.02 24

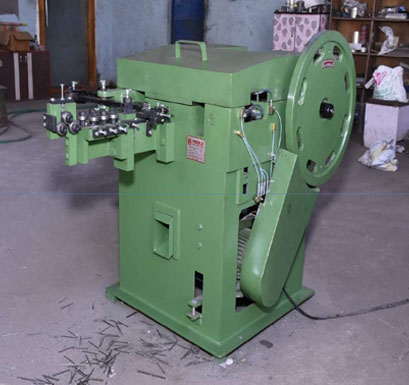

Nail Making Machine N2

Particular Size
Wire Diameter S.W.G. (mm) 16 - 11 / (1.7 - 2.9)
Nail Length inch (mm) 1/2 - 3" / ( 12 - 75)
Max. Nails/min. 400
Power Required hp/kW 2.0 HP
Approx. Net Weight kgs. 765 kgs.
approx. Gross Weight kgs. 915 kgs
Case Size ( m.m. ) 1205 X 175 X 1145
approx. Floor Area (m.m.) 1375 X 950
Production Estimate Price Estimate
Thickness inSWG Length In Inch Thickness in MM Kg in 8 Hour Average 75% Efficiency
2.50 11 2.95 400 270 KGs.
2.00 12 2.64 300
1.50 12 2.64 250
1.50 13 2.34 200
1.25 14 2.03 100
1.00 15 1.83 110
1.00 16 1.65 90

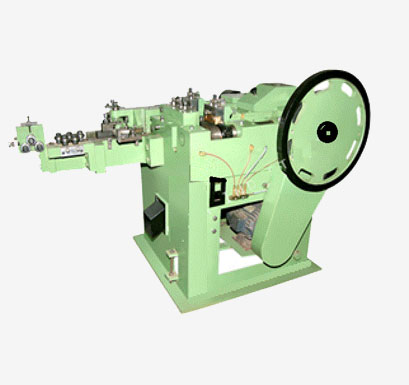

Nail Making Machine N3

Particular Size
Wire Diameter S.W.G. (m.m.) 14-8 G ( 2-4.1mm)
Nail Length Inch (mm) 1”-4” (25-100mm)
Max Speed (Nails/Minutes) 350
Power Required H.P. 3.00
Approx. Net Weight Kg. 975
\Approx. Gross Weight Kg. 1140
Case Size (mm) 1315 x1120 x1130
Production Estimate Price Estimate
Length InInch Thickness in4SWG Thickness inMM Kg in 8 Hour Average 75% Efficiency
4.00 8 4.06 1150 616 Kg.
3.00 8 4.06 985
2.50 9 3.66 757
2.00 9 3.66 525
1 1 3 3
2..5000 100 3..2266 46746
2.50 10 3.26 589
2.00 12 2.64 330
1.50 13 2.34 225
1.25 14 2.03 143

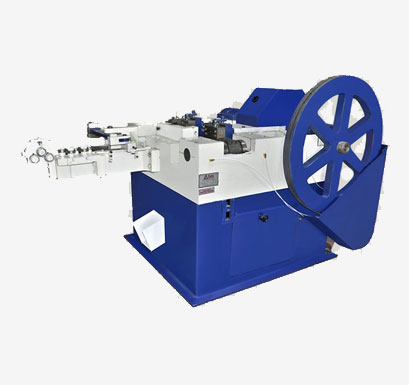

Nail Making Machine N4

Particular Size
Wire Diameter SWG (m.m.) 12-6 G (2.64-4.90mm)
Nail Length Inch (mm) 1" - 5" (25-125)
Max Speed (Nails/Minutes) 250
Power Required H.P. 5.00
Case Size (cms) 1400 x 1000 x 115
Production Estimate Price Estimate
Length InInch Thickness inSWG Thickness inMM Kg in 8 Hour Average 75% Efficiency
5.00 6 4.88 1300 690 Kg.
4.00 6 4.88 1040
2.5 8 4.06 775
2.00 8 4.06 675
1.50 10 3.26 328
2.00 10 3.26 476
2.50 10 3.26 530
2.00 12 2.64 297
4.00 8 4.06 950

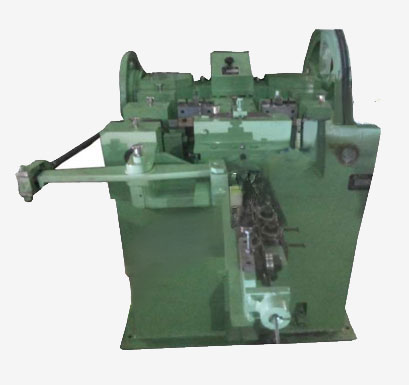

Nail Making Machine N6

Particular Size
Wire Diameter SWG (mm) 8 - 4 / (4.0 - 6.0)
Nail Length inch (mm) 2.00" - 6.00" ( 50 - 152)
Max. Nails/min. 150
Power Required hp/Kw 10
approx. Net Weight kgs. 2500 kgs.
Approx. Gross Weight kgs. 2750 kgs
Case Size ( m.m. ) 2450 X 1500 X 1900
Approx. Floor Area (m.m.) 1350 X 1270
Production Estimate Price Estimate
Length InInch Thickness inSWG Thickness inMM Kg in 8 Hour Average 75% Efficiency
1.50 4 5.90 506 1011 Kg.
2.00 4 5.90 653
2.50 4 5.90 800
3.00 4 5.90 948
4.00 4 5.90 1243
5.00 4 5.90 1539
6.00 4 5.90 1833
5.00 6 4.88 1013
4.00 8 4.06 563

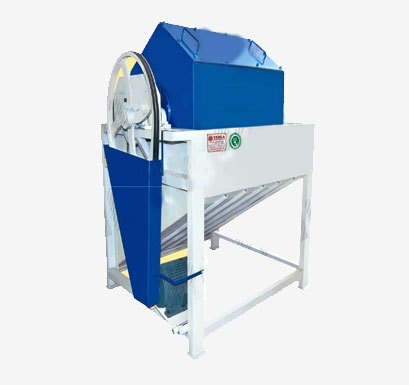

500 KGS Polishing Drum

Particular 250 kg 500 kg
Price 80,000 1,20,000
Power HP 3HP 5 HP

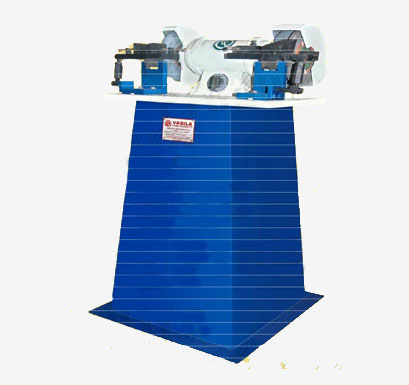

Tool Cutter Grinder

Particular
Price 55,000
Power HP 1HP
